Lumin U2X Network Transport

The detail

U2X is Lumin's reference transport for systems that use a separate DAC. It provides isolated USB and multiple S/PDIF outputs, optical and copper Gigabit networking, 10MHz master-clock connections and a matching external dual-toroidal linear power supply.

Complete product information

Manufacturer technical data

Complete technical specification

Complete manufacturer specifications and engineering information for Lumin U2X Network Transport.

Power supply
External solid-billet CNC dual-toroidal supply with low-noise linear regulation
Digital outputs
Isolated USB; optical, coaxial RCA, coaxial BNC and AES/EBU
Playback
DSD512 (22.5MHz, 1-bit); PCM up to 768kHz, 16–32-bit stereo
Transport dimensions and weight
350 × 345 × 60mm; 8kg
PSU dimensions and weight
106 × 334 × 60mm; 4kg
Clocking
50-ohm 10MHz BNC input and two 50-ohm BNC clock outputs
Network
Gigabit RJ45 and SFP optical network with built-in switch
Streaming
UPnP/OpenHome, Roon Ready, Qobuz Connect, TIDAL Connect, Spotify Connect, AirPlay-compatible, gapless playback and on-device playlists
File formats
DSF, DIFF and DoP; FLAC, ALAC, WAV and AIFF; MP3 and MQA
Control
Lumin app for iOS, Android, Apple silicon Mac and Chromebook; firmware upgradeable
Lumin U2X Network Transport

Product details

Product photography & engineering

Product details.

Lumin product photography, construction, materials and finish.

Lumin U2X Network Transport — Lumin U2X Network Transport · manufacturer photograph
01

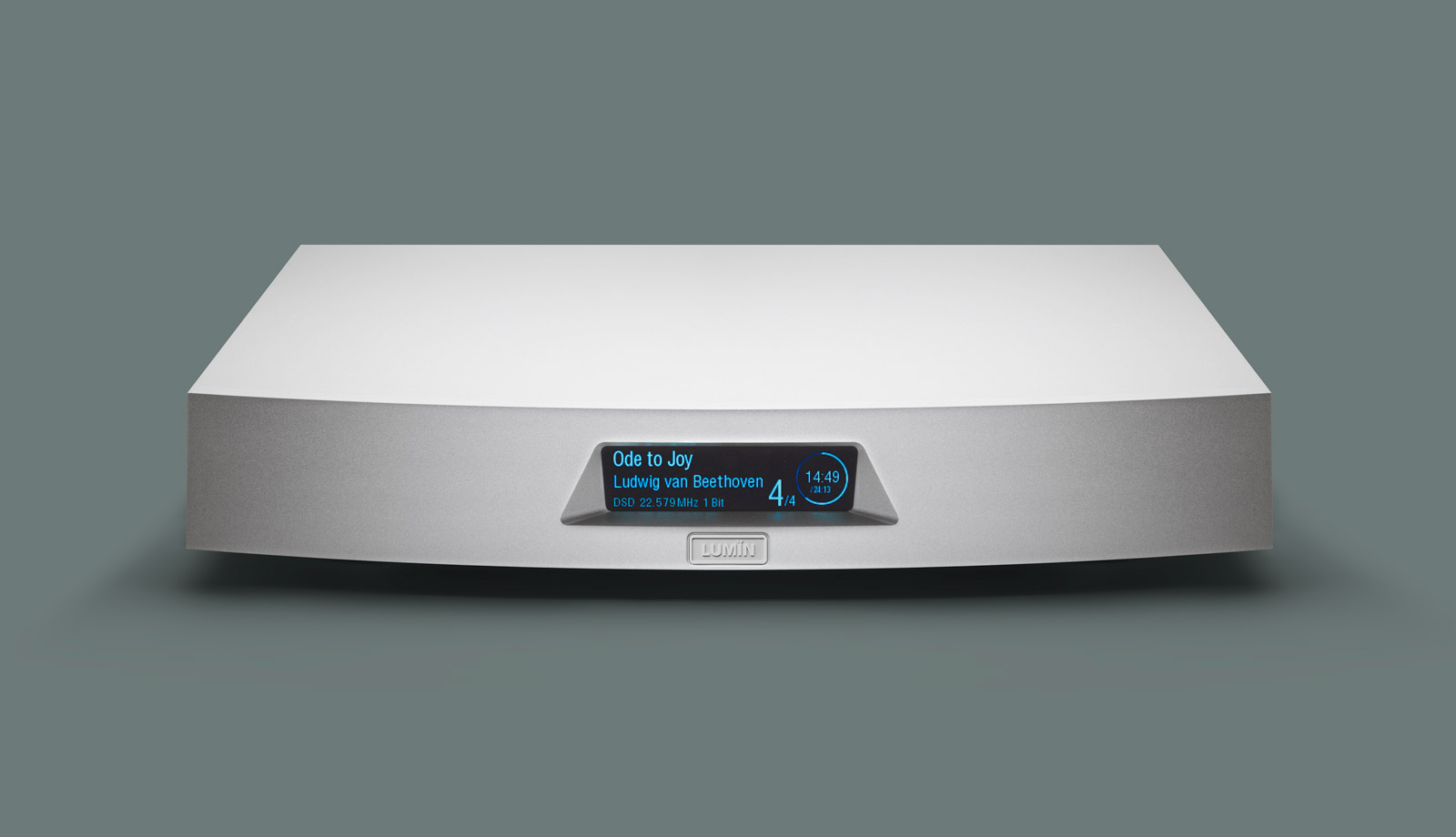

Lumin U2X Network Transport · manufacturer photograph

Showing the model’s form, proportions, materials and finish.

Lumin U2X Network Transport — Lumin U2X Network Transport · manufacturer photograph
02

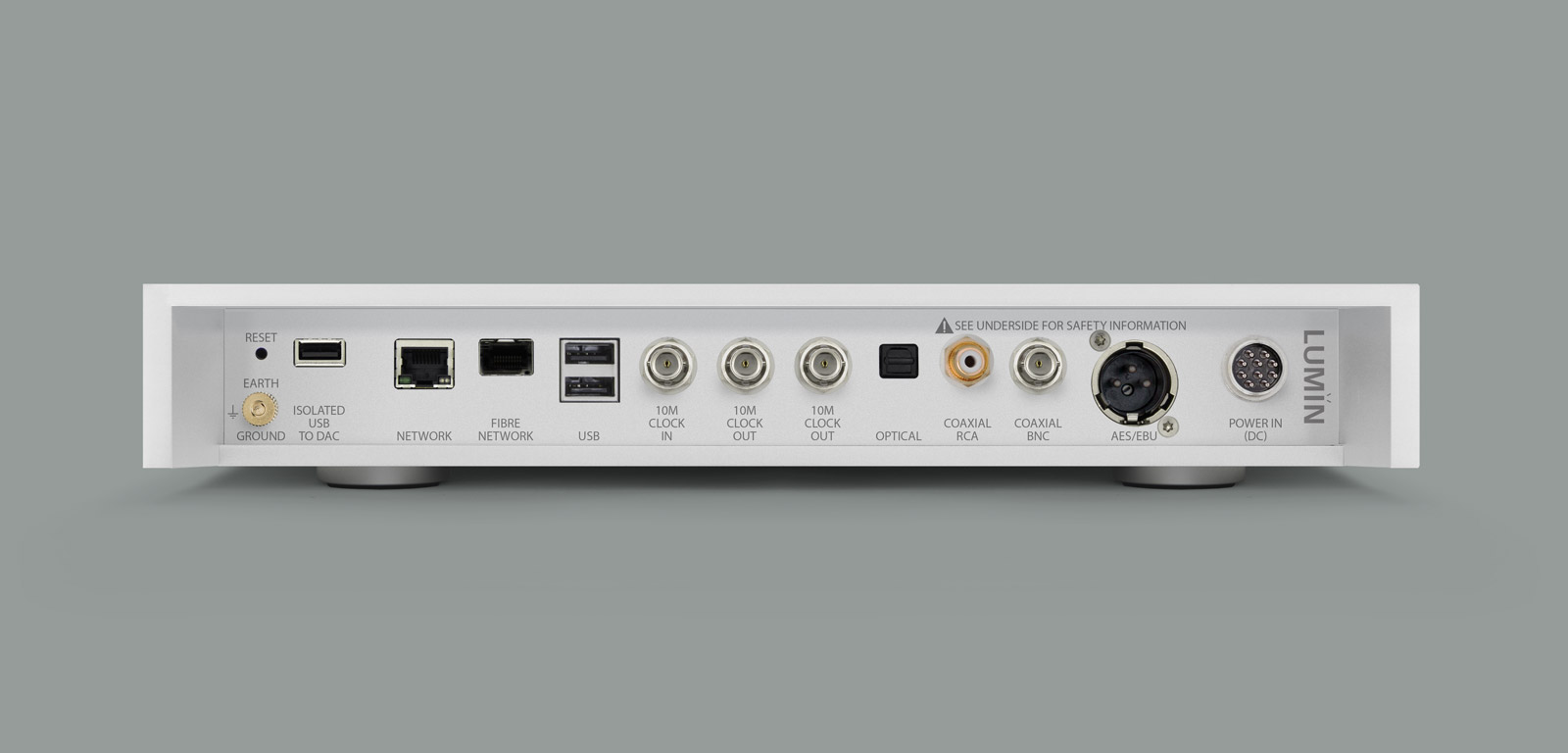

Lumin U2X Network Transport · manufacturer photograph

Showing the model’s form, proportions, materials and finish.

Lumin U2X Network Transport — Lumin U2X Network Transport · manufacturer photograph
03

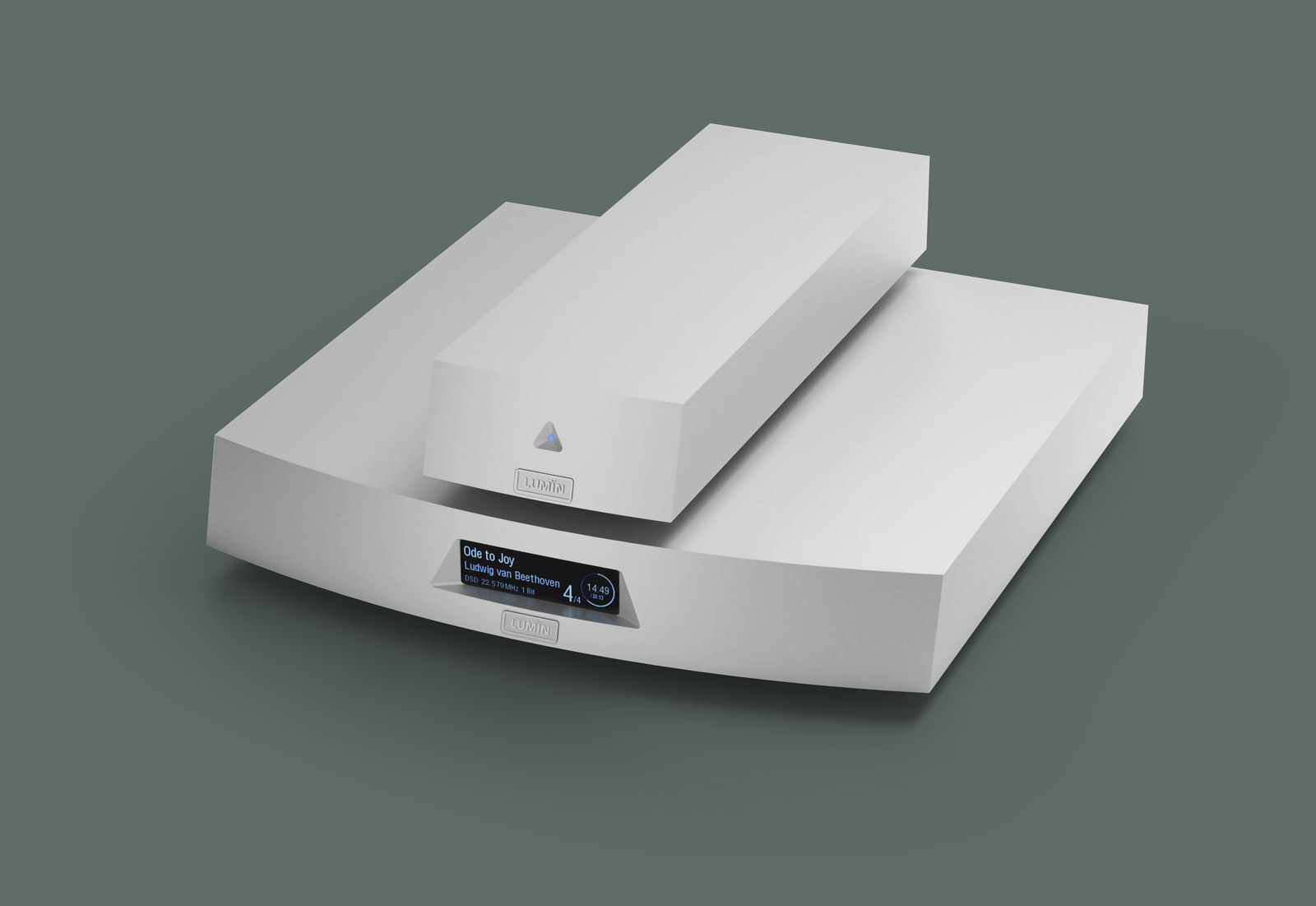

Lumin U2X Network Transport · manufacturer photograph

Showing the model’s form, proportions, materials and finish.

Photography: Lumin and the Swedish Statement Audio catalogue.
