- Power architecture
- Low-noise linear power supply integrated into the Converter
- Digital Director power consumption
- 24 W
- THD at full scale
- Below 0.0008%, 20 Hz–20 kHz at volume 100
- Input architecture
- Digital-only; no analogue-input option
- Supported formats (input dependent)
- PCM 44.1 kHz–3,072 kHz up to 32-bit; DSD64, DSD128, DSD256 and DSD512; DSD via DoP on all inputs
- Digital inputs
- 4 advanced isolated input-module slots
- Input voltage
- Automatic 120–240 V; fixed 100 V
- XLR analogue outputs
- 3.32 Vrms maximum; 150 Ω balanced
- Chassis dimensions
- 17.5 × 15.5 × 3.125 in / 444–444.5 × 393.7 × 79.4 mm per chassis
- Digital Director shipping dimensions
- 23 × 20.5 × 7.5 in / 584 × 520 × 191 mm
- Digital Director weight
- 30.2 lb / 13.7 kg
- Digital Director shipping weight
- 37 lb / 16.8 kg
- System architecture

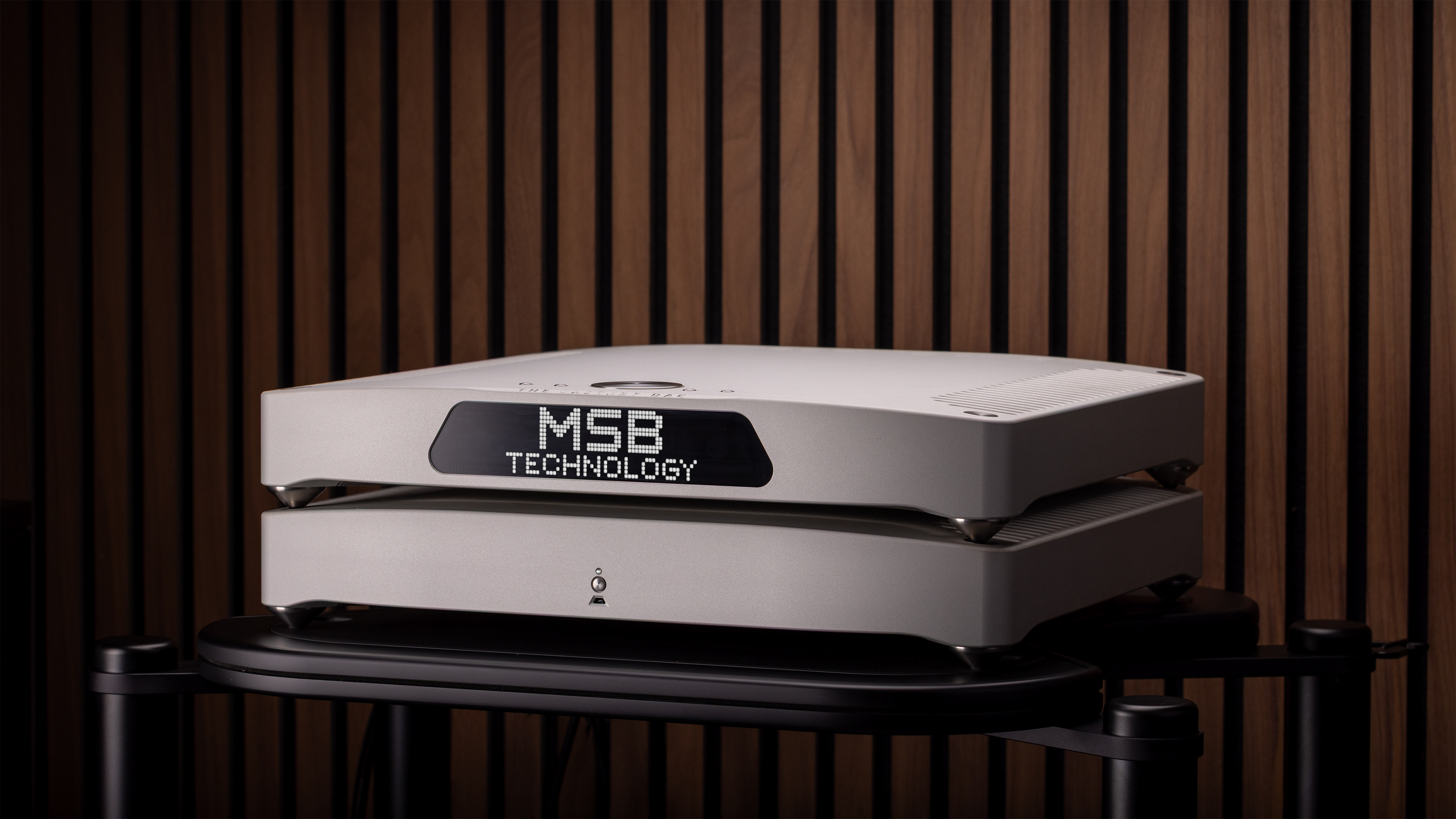

- Two chassis: Palisade Digital Director and Palisade Converter
- DAC modules
- 4 Hybrid DAC MKII modules
- Clock
- Femto 33 MKIII
- Processing technology
- Bit Diffusion Technology
- Signal-to-noise ratio
- Above 125 dB, 20 Hz–20 kHz at volume 100
- Volume control
- Purely passive, constant-impedance analogue attenuation in 1 dB steps
- Converter
- system consumption: 40 W
- Two-unit stack height
- 5.7 in / 144 mm
- Foot thread
- M10 × 1.5
- Digital Director accessories
- User manual, MSB Remote, USB charging cable, IEC power cord and four foot bases
- Converter accessories
- IEC power cord, 12 V trigger cable and four foot bases
- Warranty
- 2 years standard; additional 3 years with registration
