Lumin P1 Mini Network Music Hub

The detail

Lumin P1 Mini combines network playback, digital-to-analogue conversion and preamplifier functions in one compact chassis. Its USB, S/PDIF, HDMI ARC and analogue connectivity make it a flexible digital front end, while dual ES9028PRO DACs and a toroidal linear power supply support high-resolution playback.

Complete product information

Manufacturer technical data

Complete technical specification

Complete manufacturer specifications and engineering information for Lumin P1 Mini Network Music Hub.

Power supply
Internal toroidal linear supply with low-noise regulator
Inputs
USB Audio Class 2, optical/S/PDIF, HDMI and one stereo RCA analogue input
Outputs
USB, BNC S/PDIF, HDMI ARC; XLR balanced 6Vrms and RCA unbalanced 3Vrms
Playback
DSD512; PCM up to 384kHz, 16–32-bit stereo; MQA full decoding
Dimensions and weight
400 × 314 × 77mm; 7kg
DAC and clocking
Dual ESS SABRE32 ES9028PRO; Femto clock system with FPGA distribution
Network
Gigabit RJ45 and SFP optical network with built-in switch
Streaming
UPnP/OpenHome, Roon Ready, Qobuz Connect, TIDAL Connect, Spotify Connect, AirPlay-compatible, gapless playback and on-device playlists
File formats
DSF, DIFF and DoP; FLAC, ALAC, WAV and AIFF; MP3 and MQA
Control
Lumin app for iOS, Android, Apple silicon Mac and Chromebook; firmware upgradeable
Lumin P1 Mini Network Music Hub

Product details

Product photography & engineering

Product details.

Lumin product photography, construction, materials and finish.

Lumin P1 Mini Network Music Hub — Lumin P1 Mini Network Music Hub · manufacturer photograph
01

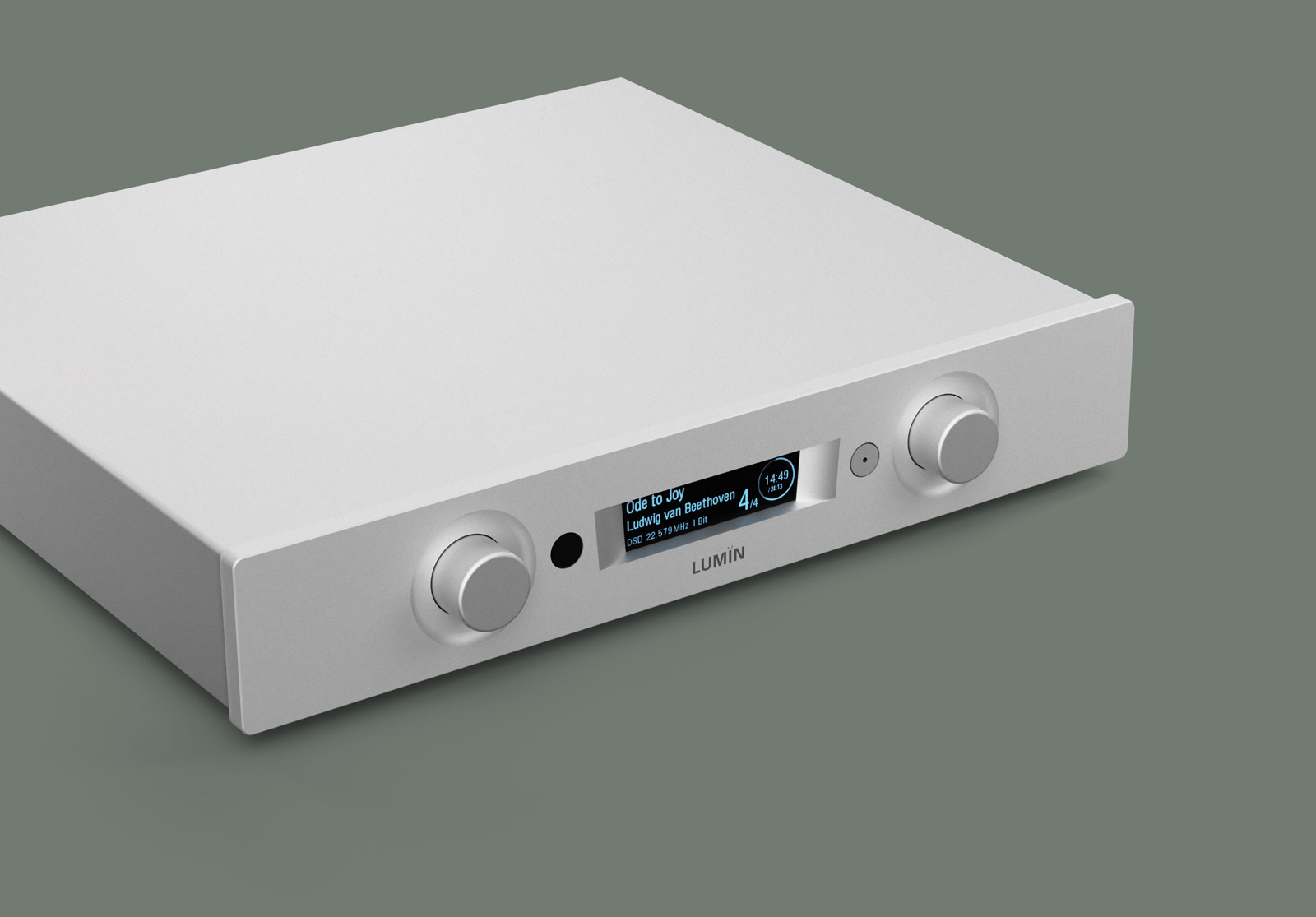

Lumin P1 Mini Network Music Hub · manufacturer photograph

Showing the model’s form, proportions, materials and finish.

Lumin P1 Mini Network Music Hub — Lumin P1 Mini Network Music Hub · manufacturer photograph
02

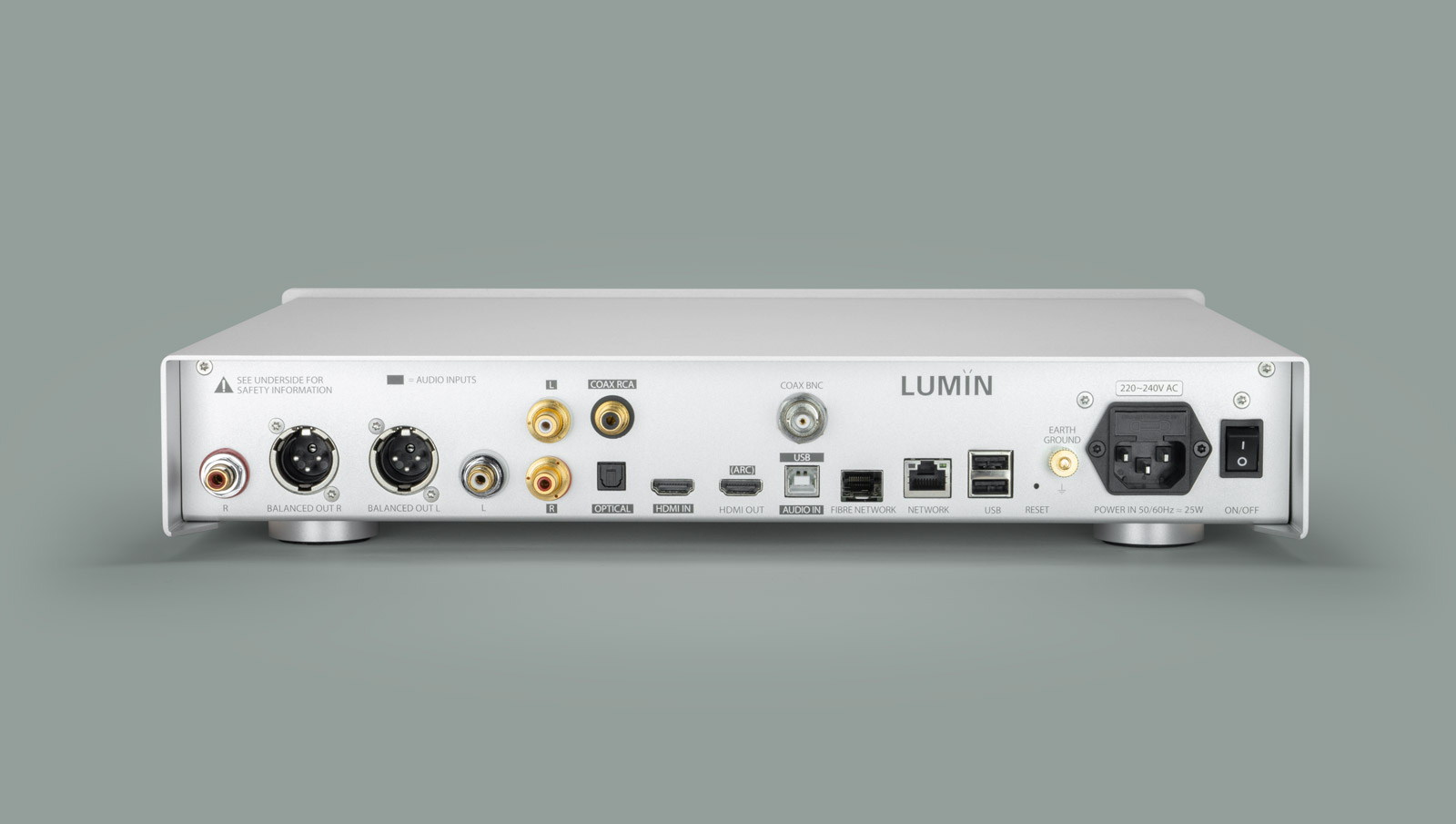

Lumin P1 Mini Network Music Hub · manufacturer photograph

Showing the model’s form, proportions, materials and finish.

Lumin P1 Mini Network Music Hub — Lumin P1 Mini Network Music Hub · manufacturer photograph
03

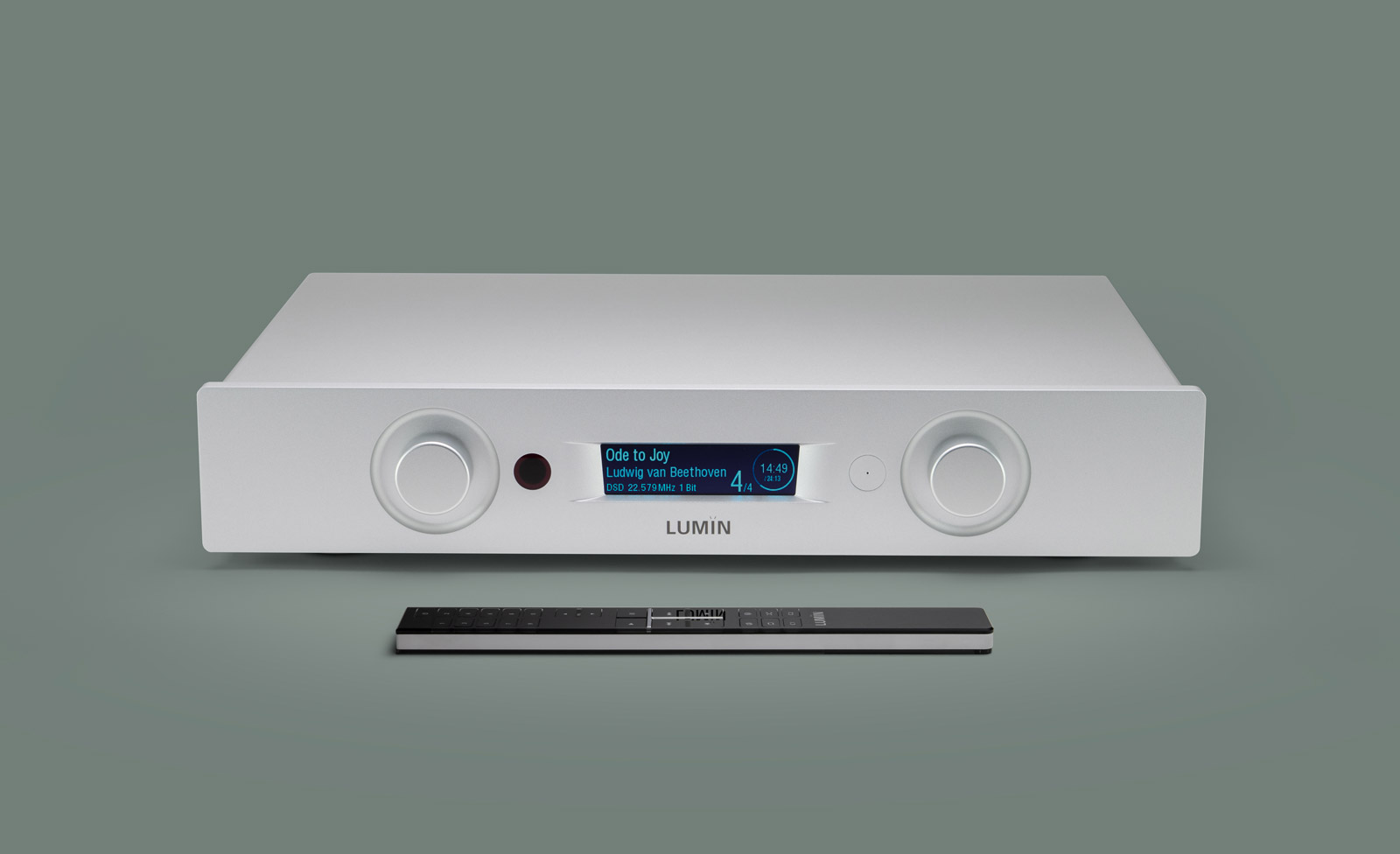

Lumin P1 Mini Network Music Hub · manufacturer photograph

Showing the model’s form, proportions, materials and finish.

Photography: Lumin and the Swedish Statement Audio catalogue.
